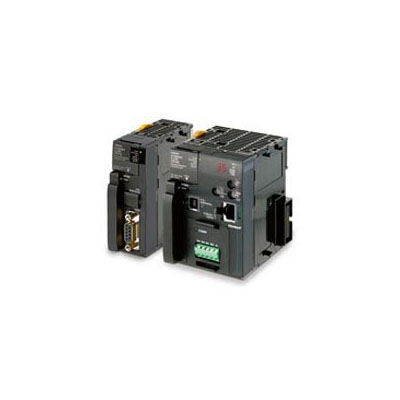

Bộ điều khiển lập trình Omron CJ2H-CPU67

Name: Bộ điều khiển lập trình Omron CJ2H-CPU67 - admin
SKU: CJ2H-CPU67

Mã sản phẩm: CJ2H-CPU67
Hãng sản xuất: Omron
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng

Dịch vụ kèm theo:
✓ Lập trình & Sửa chữa PLC Omron theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời

Mô tả

Program capacity	250 K steps
Data memory capacity	512 K words
Logic execution time	0.016 Âµs
Max. number of expansion units	40
Max. number of local I/O points	2560
Number of built-in digital I/Os	0
Communication port(s)	Serial RS-232C, USB
Height	90 mm
Width	49 mm
Depth	74.5 mm
Weight	190 g

CPU	Program capacity	Data memory capacity	Logic execution time
CJ2H-CPU64	50 K steps	160 K words	0.016 µs
CJ2H-CPU64-EIP	50 K steps	160 K words	0.016 µs
CJ2H-CPU65	100 K steps	160 K words	0.016 µs
CJ2H-CPU65-EIP	100 K steps	160 K words	0.016 µs
CJ2H-CPU66	150 K steps	352 K words	0.016 µs
CJ2H-CPU66-EIP	150 K steps	352 K words	0.016 µs
CJ2H-CPU67	250 K steps	512 K words	0.016 µs
CJ2H-CPU67-EIP	250 K steps	512 K words	0.016 µs
CJ2H-CPU68	400 K steps	832 K words	0.016 µs
CJ2H-CPU68-EIP	400 K steps	832 K words	0.016 µs
CJ2M-CPU11	25 K steps	64 K words	0.04 µs
CJ2M-CPU12	30 K steps	64 K words	0.04 µs
CJ2M-CPU13	40 K steps	64 K words	0.04 µs
CJ2M-CPU14	50 K steps	160 K words	0.04 µs
CJ2M-CPU15	80 K steps	160 K words	0.04 µs
CJ2M-CPU31	25 K steps	64 K words	0.04 µs
CJ2M-CPU32	30 K steps	64 K words	0.04 µs
CJ2M-CPU33	40 K steps	64 K words	0.04 µs
CJ2M-CPU34	50 K steps	160 K words	0.04 µs
CJ2M-CPU35	80 K steps	160 K words	0.04 µs

Module nguồn	Type of module	Type of voltage (input voltage)	Power output
CJ1W-IC101	Expansion
CJ1W-II101	Expansion
CJ1W-PA202	Power supply	AC	14 W
CJ1W-PA205C	Power supply	AC	25 W
CJ1W-PA205R	Power supply	AC	25 W
CJ1W-PD022	Power supply	DC	19.6 W
CJ1W-PD025	Power supply	DC	25 W

I/O Digital Module	Digital input type	Digital output type	Number of digital inputs
CJ1W-IA111	AC voltage	None	16
CJ1W-ID201	PNP/NPN	None	8
CJ1W-ID211	PNP/NPN	None	16
CJ1W-ID211(SL)	PNP/NPN	None	16
CJ1W-ID212	PNP/NPN	None	16
CJ1W-ID231	PNP/NPN	None	32
CJ1W-ID232	PNP/NPN	None	32
CJ1W-ID233	PNP/NPN	None	32
CJ1W-ID261	PNP/NPN	None	64
CJ1W-ID262	PNP/NPN	None	64
CJ1W-IDP01	PNP/NPN, Voltage pulse	None	16
CJ1W-INT01	Interrupt, PNP/NPN	None	16
CJ1W-MD231	PNP/NPN	NPN	16
CJ1W-MD232	PNP/NPN	PNP	16
CJ1W-MD233	PNP/NPN	NPN	16
CJ1W-MD261	PNP/NPN	NPN	32
CJ1W-MD263	PNP/NPN	NPN	32
CJ1W-MD563	TTL	TTL	32
CJ1W-OA201	None	Triac	0
CJ1W-OC201	None	Relay NO	0
CJ1W-OC201(SL)	None	Relay NO	0
CJ1W-OC211	None	Relay NO	0
CJ1W-OC211(SL)	None	Relay NO	0
CJ1W-OD202	None	PNP	0
CJ1W-OD203	None	NPN	0
CJ1W-OD204	None	PNP	0
CJ1W-OD211	None	NPN	0
CJ1W-OD211(SL)	None	NPN	0
CJ1W-OD212	None	PNP	0
CJ1W-OD212(SL)	None	PNP	0
CJ1W-OD213	None	NPN	0
CJ1W-OD231	None	NPN	0
CJ1W-OD232	None	PNP	0
CJ1W-OD234	None	NPN	0
CJ1W-OD261	None	NPN	0
CJ1W-OD262	None	PNP	0

I/O Analog Module	Type of module	Linear analog input type	Temperature input type
CJ1W-AD041-V1	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-AD041-V1(SL)	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-AD042	Analog I/O	-10 to 10 V, -5 to 5 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-AD04U	Analog I/O	0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA	B, J, JPt100, K, L, Pt100, Pt1000, R, S, T
CJ1W-AD04U(SL)	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	B, J, JPt100, K, L, Pt100, Pt1000, R, S, T
CJ1W-AD081-V1	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-AD081-V1(SL)	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-DA021	Analog I/O	None	None
CJ1W-DA021(SL)	Analog I/O	None	None
CJ1W-DA041	Analog I/O	None	None
CJ1W-DA041(SL)	Analog I/O	None	None
CJ1W-DA042V	Analog I/O	None	None
CJ1W-DA08C	Analog I/O	None	None
CJ1W-DA08C(SL)	Analog I/O	None	None
CJ1W-DA08V	Analog I/O	None	None
CJ1W-DA08V(SL)	Analog I/O	None	None
CJ1W-F130	Weighing	Load cell	None
CJ1W-MAD42	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-MAD42(SL)	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-PTS51	Analog I/O	None	B, J, K, L, R, S, T
CJ1W-PTS52	Analog I/O	None	JPt100, Pt100
CJ1W-TC002	Temperature control	None	B, J, K, L, R, S, T
CJ1W-TC102	Temperature control	None	Pt100
CJ1W-TC104	Temperature control	None	Pt100
CJ1W-TS561	Analog I/O	None	J, K
CJ1W-TS562	Analog I/O	None	Pt100, Pt1000
CJ1W-TS562(SL)	Analog I/O	None	Pt100, Pt1000

Module vị trí	Type of module	Communication port(s)	Digital input type
CJ1W-CT021	Encoder input	None	Incremental encoder, Line driver (RS-422), Open collector
CJ1W-CTL41-E	Encoder input	None	Incremental encoder, Line driver (RS-422), Open collector
CJ1W-CTS21-E	Encoder input	None	SSI encoder
CJ1W-NC271	Positioning	MECHATROLINK II Master
CJ1W-NC281	Positioning	EtherCAT Master
CJ1W-NC413	Positioning	None	Line driver (RS-422), NPN, No voltage, PNP
CJ1W-NC482	Positioning	EtherCAT Master
CJ1W-NCF71	Positioning	MECHATROLINK II Master
CJ2M-MD211	Positioning	None	Incremental encoder, Interrupt, NPN, Voltage pulse
CJ2M-MD212	Positioning	None	Incremental encoder, Interrupt, PNP, Voltage pulse

Module truyền thông	Communication port(s)	Number of communication ports	Max. data rate
CJ1W-CLK23	Controller Link	1	2000 kBit/s
CJ1W-CORT21	CAN	1
CJ1W-CRM21	CompoNet Master	1
CJ1W-DRM21	DeviceNet Master, DeviceNet Slave	1
CJ1W-ECT21	EtherCAT Slave	2
CJ1W-EIP21S	EtherNet/IP, Ethernet TCP/IP	1
CJ1W-ETN21	Ethernet TCP/IP	1
CJ1W-PNT21	PROFINET Master	1
CJ1W-PRM21	PROFIBUS DP Master	1
CJ1W-PRT21	PROFIBUS DP Slave	1
CJ1W-SCU22	MODBUS Master, MODBUS Slave, Serial RS-232C	2	230 kBit/s
CJ1W-SCU32	MODBUS Master, MODBUS Slave, Serial RS-422	2	230 kBit/s
CJ1W-SCU42	MODBUS Master, MODBUS Slave, Serial RS-232C, Serial RS-422, Serial RS-485	2	230 kBit/s
