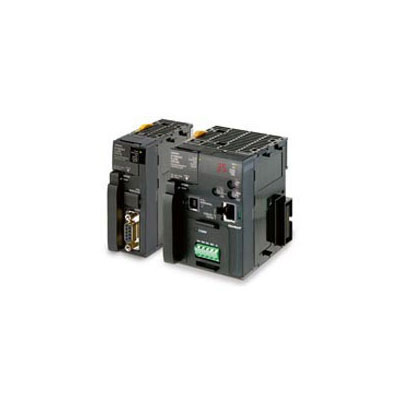

Bộ điều khiển lập trình Omron CJ2M-CPU15

Name: Bộ điều khiển lập trình Omron CJ2M-CPU15 - admin
SKU: CJ2M-CPU15
Price: 18920000 VND
Availability: InStock

18.920.000 ₫

Mã sản phẩm: CJ2M-CPU15
Hãng sản xuất: Omron
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng

Dịch vụ kèm theo:
✓ Lập trình & Sửa chữa PLC Omron theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời

Mô tả

Category	CPU module
Loại	Modular
Nguốn cấp	200…240VAC
Bộ nhớ	60Ksteps
Ngôn ngữ lập trình	LAD, SFC, ST, IL
Chuẩn kết nối truyền thông	USB, RS-232C, Ethernet RJ45
Giao thức truyền thông	TCP/IP, UDP, APR, ICMP, BOOTP
Số mô đun mở rộng	40
Kết nối máy tính	USB
Chức năng bảo vệ	Memory protect, I/O short-circuit, Program protect
Chức năng	Simple backup function, Unsolicited communications, Remote programming and monitoring, Automatic online connection via network, Read protection using password, FINS write protection, Unit name function, Hardware ID using lot numbers, System FALS error detection (user-defined fatal error), Version error detection, Memory card transfer error detection, Program error detection, Instruction processing error detection, Indirect DM/EM BCD error detection, Illegal area access error detection, No END error detection, Task error detection, Differentiation overflow error detection, Invalid instruction error detection, User program area overflow error detection, Cycle time exceeded error detection, System FAL error detection (user-defined non-fatal error), Duplicate refreshing error detection, Basic I/O unit error detection, Backup memory error detection, PLC setup error detection, CPU bus unit error detection, Special I/O unit error detection, Tag memory error detection, Battery error detection, Cpu bus unit setting error detection, Special I/O unit setting error detection, Option board error detection, Memory error detection, I/O bus error detection, Unit/rack number duplication error, Too many I/O points error detection, I/O setting error detection, Error log, Cpu error detection, User-defined failure diagnosis, Load OFF function, RUN output, Basic I/O load short-circuit detection, Failure point detection, CPU standby detection, Languages in function block definitions, Online editing, Force-set/reset, Differentiate monitoring, Data tracing, Continuous tracing, Automatically starting tracing when operation starts, Storing location of error when an error occurs, Program check
Phương pháp đấu nối	Connector
Kiểu lắp đặt	DIN Rail (Track) mounting
Nhiệt độ hoạt động môi trường	0…55°C
Độ ẩm hoạt động môi trường	10…90%
Chiều sâu tổng thể	84.5mm
Tiêu chuẩn	CSA, UL, cULus, CE, cUL, Lloyds, NK

CPU	Program capacity	Data memory capacity	Logic execution time
CJ2H-CPU64	50 K steps	160 K words	0.016 µs
CJ2H-CPU64-EIP	50 K steps	160 K words	0.016 µs
CJ2H-CPU65	100 K steps	160 K words	0.016 µs
CJ2H-CPU65-EIP	100 K steps	160 K words	0.016 µs
CJ2H-CPU66	150 K steps	352 K words	0.016 µs
CJ2H-CPU66-EIP	150 K steps	352 K words	0.016 µs
CJ2H-CPU67	250 K steps	512 K words	0.016 µs
CJ2H-CPU67-EIP	250 K steps	512 K words	0.016 µs
CJ2H-CPU68	400 K steps	832 K words	0.016 µs
CJ2H-CPU68-EIP	400 K steps	832 K words	0.016 µs
CJ2M-CPU11	25 K steps	64 K words	0.04 µs
CJ2M-CPU12	30 K steps	64 K words	0.04 µs
CJ2M-CPU13	40 K steps	64 K words	0.04 µs
CJ2M-CPU14	50 K steps	160 K words	0.04 µs
CJ2M-CPU15	80 K steps	160 K words	0.04 µs
CJ2M-CPU31	25 K steps	64 K words	0.04 µs
CJ2M-CPU32	30 K steps	64 K words	0.04 µs
CJ2M-CPU33	40 K steps	64 K words	0.04 µs
CJ2M-CPU34	50 K steps	160 K words	0.04 µs
CJ2M-CPU35	80 K steps	160 K words	0.04 µs

Module nguồn	Type of module	Type of voltage (input voltage)	Power output
CJ1W-IC101	Expansion
CJ1W-II101	Expansion
CJ1W-PA202	Power supply	AC	14 W
CJ1W-PA205C	Power supply	AC	25 W
CJ1W-PA205R	Power supply	AC	25 W
CJ1W-PD022	Power supply	DC	19.6 W
CJ1W-PD025	Power supply	DC	25 W

I/O Digital Module	Digital input type	Digital output type	Number of digital inputs
CJ1W-IA111	AC voltage	None	16
CJ1W-ID201	PNP/NPN	None	8
CJ1W-ID211	PNP/NPN	None	16
CJ1W-ID211(SL)	PNP/NPN	None	16
CJ1W-ID212	PNP/NPN	None	16
CJ1W-ID231	PNP/NPN	None	32
CJ1W-ID232	PNP/NPN	None	32
CJ1W-ID233	PNP/NPN	None	32
CJ1W-ID261	PNP/NPN	None	64
CJ1W-ID262	PNP/NPN	None	64
CJ1W-IDP01	PNP/NPN, Voltage pulse	None	16
CJ1W-INT01	Interrupt, PNP/NPN	None	16
CJ1W-MD231	PNP/NPN	NPN	16
CJ1W-MD232	PNP/NPN	PNP	16
CJ1W-MD233	PNP/NPN	NPN	16
CJ1W-MD261	PNP/NPN	NPN	32
CJ1W-MD263	PNP/NPN	NPN	32
CJ1W-MD563	TTL	TTL	32
CJ1W-OA201	None	Triac	0
CJ1W-OC201	None	Relay NO	0
CJ1W-OC201(SL)	None	Relay NO	0
CJ1W-OC211	None	Relay NO	0
CJ1W-OC211(SL)	None	Relay NO	0
CJ1W-OD202	None	PNP	0
CJ1W-OD203	None	NPN	0
CJ1W-OD204	None	PNP	0
CJ1W-OD211	None	NPN	0
CJ1W-OD211(SL)	None	NPN	0
CJ1W-OD212	None	PNP	0
CJ1W-OD212(SL)	None	PNP	0
CJ1W-OD213	None	NPN	0
CJ1W-OD231	None	NPN	0
CJ1W-OD232	None	PNP	0
CJ1W-OD234	None	NPN	0
CJ1W-OD261	None	NPN	0
CJ1W-OD262	None	PNP	0

I/O Analog Module	Type of module	Linear analog input type	Temperature input type
CJ1W-AD041-V1	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-AD041-V1(SL)	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-AD042	Analog I/O	-10 to 10 V, -5 to 5 V, 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-AD04U	Analog I/O	0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA	B, J, JPt100, K, L, Pt100, Pt1000, R, S, T
CJ1W-AD04U(SL)	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	B, J, JPt100, K, L, Pt100, Pt1000, R, S, T
CJ1W-AD081-V1	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-AD081-V1(SL)	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-DA021	Analog I/O	None	None
CJ1W-DA021(SL)	Analog I/O	None	None
CJ1W-DA041	Analog I/O	None	None
CJ1W-DA041(SL)	Analog I/O	None	None
CJ1W-DA042V	Analog I/O	None	None
CJ1W-DA08C	Analog I/O	None	None
CJ1W-DA08C(SL)	Analog I/O	None	None
CJ1W-DA08V	Analog I/O	None	None
CJ1W-DA08V(SL)	Analog I/O	None	None
CJ1W-F130	Weighing	Load cell	None
CJ1W-MAD42	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-MAD42(SL)	Analog I/O	-10 to 10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 4 to 20 mA	None
CJ1W-PTS51	Analog I/O	None	B, J, K, L, R, S, T
CJ1W-PTS52	Analog I/O	None	JPt100, Pt100
CJ1W-TC002	Temperature control	None	B, J, K, L, R, S, T
CJ1W-TC102	Temperature control	None	Pt100
CJ1W-TC104	Temperature control	None	Pt100
CJ1W-TS561	Analog I/O	None	J, K
CJ1W-TS562	Analog I/O	None	Pt100, Pt1000
CJ1W-TS562(SL)	Analog I/O	None	Pt100, Pt1000

Module vị trí	Type of module	Communication port(s)	Digital input type
CJ1W-CT021	Encoder input	None	Incremental encoder, Line driver (RS-422), Open collector
CJ1W-CTL41-E	Encoder input	None	Incremental encoder, Line driver (RS-422), Open collector
CJ1W-CTS21-E	Encoder input	None	SSI encoder
CJ1W-NC271	Positioning	MECHATROLINK II Master
CJ1W-NC281	Positioning	EtherCAT Master
CJ1W-NC413	Positioning	None	Line driver (RS-422), NPN, No voltage, PNP
CJ1W-NC482	Positioning	EtherCAT Master
CJ1W-NCF71	Positioning	MECHATROLINK II Master
CJ2M-MD211	Positioning	None	Incremental encoder, Interrupt, NPN, Voltage pulse
CJ2M-MD212	Positioning	None	Incremental encoder, Interrupt, PNP, Voltage pulse

Module truyền thông	Communication port(s)	Number of communication ports	Max. data rate
CJ1W-CLK23	Controller Link	1	2000 kBit/s
CJ1W-CORT21	CAN	1
CJ1W-CRM21	CompoNet Master	1
CJ1W-DRM21	DeviceNet Master, DeviceNet Slave	1
CJ1W-ECT21	EtherCAT Slave	2
CJ1W-EIP21S	EtherNet/IP, Ethernet TCP/IP	1
CJ1W-ETN21	Ethernet TCP/IP	1
CJ1W-PNT21	PROFINET Master	1
CJ1W-PRM21	PROFIBUS DP Master	1
CJ1W-PRT21	PROFIBUS DP Slave	1
CJ1W-SCU22	MODBUS Master, MODBUS Slave, Serial RS-232C	2	230 kBit/s
CJ1W-SCU32	MODBUS Master, MODBUS Slave, Serial RS-422	2	230 kBit/s
CJ1W-SCU42	MODBUS Master, MODBUS Slave, Serial RS-232C, Serial RS-422, Serial RS-485	2	230 kBit/s
