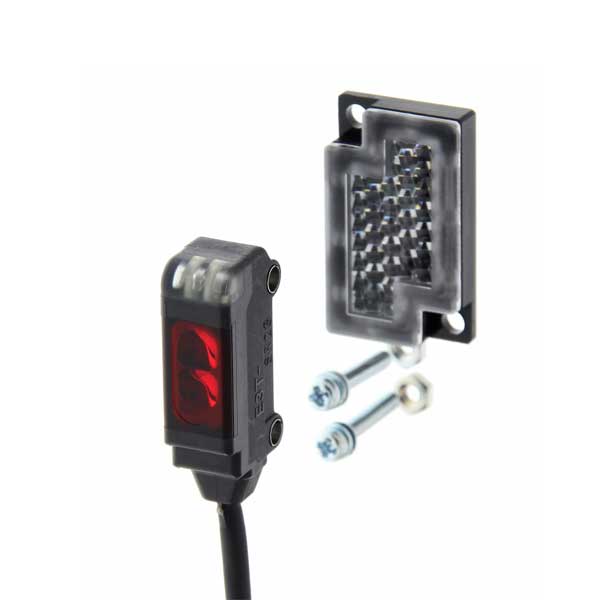

Cảm biến quang Omron E3T-SR44 2M (Phản xạ gương)

Model	E3T-SR44 2M
Nguồn cấp	12…24VDC
Phương pháp phát hiện	Phản xạ gương
Khoảng cách phát hiện	30…200mm
Loại đầu ra	PNP
Chế độ hoạt động	Dark ON
Loại	Cảm biến quang Tiêu chuẩn (tích hợp bộ khuếch đại)
Hình dáng	Hình chữ nhật
Nguyên lý phát hiện	Polarization filter
Đối tượng phát hiện	Vật mờ, đục
Kích thước vật phát hiện Tiêu chuẩn	D27mm, D2mm
Nguồn sáng	LED đỏ
Cài đặt độ nhạy	Không
Thời gian đáp ứng	1ms
Kiểu hiển thị	Hiển thị LED
Mạch bảo vệ	Output short-circuit protection, Power supply reverse polarity protection, Output reverse polarity protection
Chức năng	Mutual interference prevention
Vật liệu vỏ	Plastic
Phương pháp lắp đặt	Bracket mounting, Surface mounting
Phương pháp kết nối	Dây liền
Chiều dài cáp	2m
Môi trường ánh sáng	Incandescent lamp: 5,000 lx max., Sunlight: 10,000 lx max
Môi trường hoạt động	Chống nước
Nhiệt độ môi trường	-25…55°C
Độ ẩm môi trường	35…85%
Khối lượng tương đối	20g
Chiều rộng tổng thể	7mm
Chiều cao tổng thể	24.5mm
Chiều sâu tổng thể	11mm
Cấp bảo vệ	IP67
Tiêu chuẩn	CE

Model Number Description E3T-CD11 2M Diffuse-reflective, Sensing distance 3 to 50 mm, Top view, NPN output, Light-ON E3T-CD13 2M Diffuse-reflective, Sensing distance 3 to 50 mm, Top view, PNP output, Dark-ON E3T-CT12 2M Through-beam type, Sensing distance 1 m, Top view, NPN output, Dark-ON E3T-CT14 2M Through-beam type, Sensing distance 1 m, Top view, PNP output, Light-ON E3T-CT22S 2M Through-beam type, Sensing distance 500 mm, Side view, NPN output, Dark-ON E3T-CT24S 2M Through-beam type, Sensing distance 500 mm, Side view, PNP output, Light-ON E3T-FD11 2M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FD11 5M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FD11M 2M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-FD11M 5M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-FD12 2M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FD12 5M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FD12M 2M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-FD12M 5M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-FD13 2M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FD13 5M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FD13M 2M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-FD14 2M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FD14 5M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FD14M 2M Diffuse-reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-FL11 2M BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 15 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FL12 2M BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 15 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FL13 2M BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 15 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FL14 2M BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 15 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FL21 2M BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FL22 2M BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FL23 2M BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FL24 2M BGS reflective, Sensing distance White paper 50 x 50 mm: 1 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FT11 2M Through-beam type, Sensing distance 500 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FT11 5M Through-beam type, Sensing distance 500 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FT11F 2M Through-beam type, Sensing distance 500 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-FT12 2M Through-beam type, Sensing distance 500 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FT12 5M Through-beam type, Sensing distance 500 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FT12F 2M Through-beam type, Sensing distance 500 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-FT13 2M Through-beam type, Sensing distance 500 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FT13 5M Through-beam type, Sensing distance 500 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FT13F 2M Through-beam type, Sensing distance 500 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-FT14 2M Through-beam type, Sensing distance 500 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FT14 5M Through-beam type, Sensing distance 500 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FT14F 2M Through-beam type, Sensing distance 500 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-FT21 2M Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FT21F 2M Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-FT22 2M Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FT22 5M Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FT22F 2M Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-FT23 2M Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FT23F 2M Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-FT24 2M Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-FT24 5M Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-FT24F 2M Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-SL11 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SL11 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SL11M 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-SL11M 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-SL12 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SL12 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SL12M 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-SL12M 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-SL13 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SL13 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SL13M 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-SL13M 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Light-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-SL14 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SL14 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SL14M 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-SL14M 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 15 mm, Dark-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-SL21 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SL21 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SL21M 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-SL21M 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-SL22 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SL22 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SL22M 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-SL22M 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-SL23 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SL23 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SL23M 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-SL23M 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Light-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-SL24 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SL24 5M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SL24M 2M Limited Reflective, Sensing distance White paper 50 x 50 mm: 5 to 30 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-SR41 2M Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SR41 5M Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SR42 2M Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SR42 5M Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SR43 2M Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SR43 5M Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-SR44 2M Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-SR44 5M Retro-reflective without M.S.R. function, Sensing distance When using the E39-R4: 30 to 200 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST11 2M Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST11 5M Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST11F 2M Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST11M 2M Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-ST11M 5M Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-ST11MF 2M Through-beam type, Sensing distance 1 m, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) E3T-ST12 2M Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST12 5M Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST12F 2M Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST12M 2M Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-ST12M 5M Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-ST12MF 2M Through-beam type, Sensing distance 1 m, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) E3T-ST13 2M Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST13 5M Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST13F 2M Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST13M 2M Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-ST13M 5M Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-ST13MF 2M Through-beam type, Sensing distance 1 m, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) E3T-ST14 2M Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST14 5M Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST14F 2M Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST14M 2M Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-ST14M 5M Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-ST14MF 2M Through-beam type, Sensing distance 1 m, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) E3T-ST21 2M Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST21 5M Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST21F 2M Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST21M 2M Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-ST21M 5M Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-ST21MF 2M Through-beam type, Sensing distance 300 mm, Light-ON, NPN, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) E3T-ST22 2M Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST22F 2M Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST22M 2M Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-ST22M 5M Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (5 m), M3 mounting, Red LED (650 nm) E3T-ST22MF 2M Through-beam type, Sensing distance 300 mm, Dark-ON, NPN, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) E3T-ST23 2M Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST23F 2M Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST23M 2M Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-ST23MF 2M Through-beam type, Sensing distance 300 mm, Light-ON, PNP, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) E3T-ST24 2M Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST24 5M Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST24F 2M Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST24M 2M Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Red LED (650 nm) E3T-ST24MF 2M Through-beam type, Sensing distance 300 mm, Dark-ON, PNP, Pre-wired models (2 m), M3 mounting, Infrared LED (860 nm) E3T-ST31 2M Through-beam type, Sensing distance 2 m, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST31 5M Through-beam type, Sensing distance 2 m, Light-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST31F 2M Through-beam type, Sensing distance 2 m, Light-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST32 2M Through-beam type, Sensing distance 2 m, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST32 5M Through-beam type, Sensing distance 2 m, Dark-ON, NPN, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST32F 2M Through-beam type, Sensing distance 2 m, Dark-ON, NPN, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST33 2M Through-beam type, Sensing distance 2 m, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST33 5M Through-beam type, Sensing distance 2 m, Light-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST33F 2M Through-beam type, Sensing distance 2 m, Light-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm) E3T-ST34 2M Through-beam type, Sensing distance 2 m, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Red LED (650 nm) E3T-ST34 5M Through-beam type, Sensing distance 2 m, Dark-ON, PNP, Pre-wired models (5 m), M2 mounting, Red LED (650 nm) E3T-ST34F 2M Through-beam type, Sensing distance 2 m, Dark-ON, PNP, Pre-wired models (2 m), M2 mounting, Infrared LED (860 nm)

Kích thước lắp đặt cảm biến

► Catalogue Omron E3T
