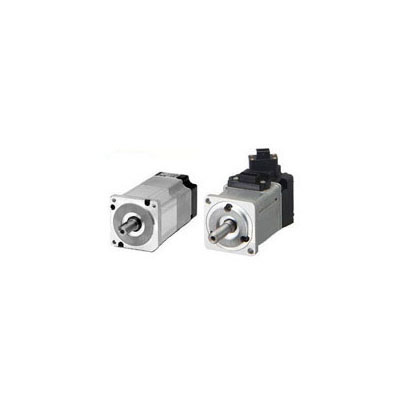

Động cơ Servo Omron R88M-G20030L-OS2

6.081.000 ₫

Mã sản phẩm: R88M-G20030L-OS2
Hãng sản xuất: Omron
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng

Rated power output	200W
Rated current	2.5A
Rated speed	200rpm
Rated torque	0.64N.m
Brake built-in	No
Compatible device	Servo driver: R88D-GT02L
Standard accessories	No
Type	Servo motors
Actuation type	Rotary
Power supply voltage	100VAC
Maximum speed	5000rpm
Maximum torque	1.78N.m
Rotor moment of inertia	1.4×10-5kg.m2
Maximum current	7.6A
Brake static friction torque	1.27N.m
Brake power consumption	9W
Encoder built-in	Yes
Encoder type	Incremental
Encoder resolution	2500p/r
Encoder output type	Line driver
Encoder output phase	A, A-, B, B-, Z, Z- phase
Shaft diameter	11mm
Shaft length	30mm
Shaft type	Keyway shaft
Max. radial shaft load	245N
Max. thrust shaft load	98N
Flange size	60x60mm
Insulation class	Class B (CE)
Electric connection method	Connector
Mounting method	Flange mounting
Operation ambience	Oil spray
Ambient temperature	0…40°C
Ambient humidity	35…85%
Approx. weight	800g
Overall width	60mm
Overall height	73mm
Overall depth	109.5mm
Degree of protection	IP65
Representative standard	IEC, UL
