Mô tả
| Rated power output | 400W |
| Rated current | 2.6A |
| Rated speed | 200rpm |
| Rated torque | 1.3N.m |
| Brake built-in | Yes |
| Compatible device | Servo driver: R88D-GT04H |
| Standard accessories | No |

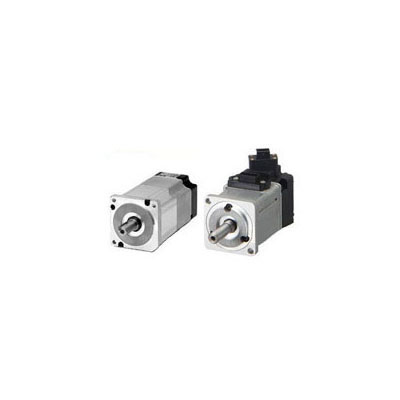

| Type | Servo motors |
| Actuation type | Rotary |
| Power supply voltage | 200VAC |
| Maximum speed | 5000rpm |
| Maximum torque | 3.67N.m |
| Rotor moment of inertia | 2.6×10-5kg.m2 |
| Maximum current | 7.9A |
| Brake static friction torque | 1.27N.m |
| Brake rated voltage | 24VDC |
| Brake power consumption | 9W |
| Encoder built-in | Yes |
| Encoder type | Incremental |
| Encoder resolution | 2500p/r |
| Encoder voltage | 5VDC |
| Encoder output phase | A, A-, B, B-, Z, Z- phase |
| Shaft type | Round shaft |
| Max. radial shaft load | 245N |
| Max. thrust shaft load | 98N |
| Insulation class | Class B (CE) |
| Electric connection method | Connector |
| Mounting method | Flange mounting |
| Operation ambience | Oil spray |
| Ambient temperature | 0…40°C |
| Ambient humidity | 35…85% |
| Approx. weight | 1.7kg |
| Degree of protection | IP65 |
| Representative standard | IEC, UL |
