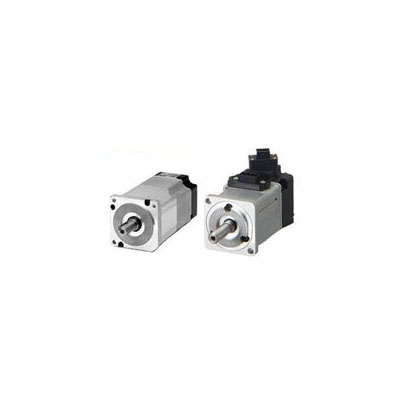

Động cơ Servo Omron R88M-GP40030H-BS2

12.818.000 ₫

Mã sản phẩm: R88M-GP40030H-BS2
Hãng sản xuất: Omron
Công nghệ: Nhật Bản
Chất lượng: Mới 100%
Bảo hành: Chính hãng

Rated power output	400W
Rated current	2.5A
Rated speed	200rpm
Rated torque	1.3N.m
Brake built-in	Yes
Compatible device	Servo driver: R88D-GT04H
Standard accessories	No
Type	Servo motors
Actuation type	Rotary
Power supply voltage	200VAC
Maximum speed	5000rpm
Maximum torque	3.65N.m
Rotor moment of inertia	6.4×10-5kg.m2
Maximum current	7.5A
Brake static friction torque	1.27N.m
Brake rated voltage	24VDC
Brake power consumption	10W
Encoder built-in	Yes
Encoder type	Incremental
Encoder resolution	2500p/r
Encoder voltage	5VDC
Encoder output phase	A, A-, B, B-, Z, Z- phase
Shaft diameter	14mm
Shaft length	30mm
Shaft type	Keyway shaft
Max. radial shaft load	245N
Max. thrust shaft load	98N
Flange size	80x80mm
Insulation class	Class B (CE)
Electric connection method	Connector
Mounting method	Flange mounting
Operation ambience	Standard
Ambient temperature	0…40°C
Ambient humidity	35…85%
Approx. weight	2.5kg
Overall width	80mm
Overall height	93mm
Overall depth	145mm
Degree of protection	IP65
Representative standard	IEC, UL
