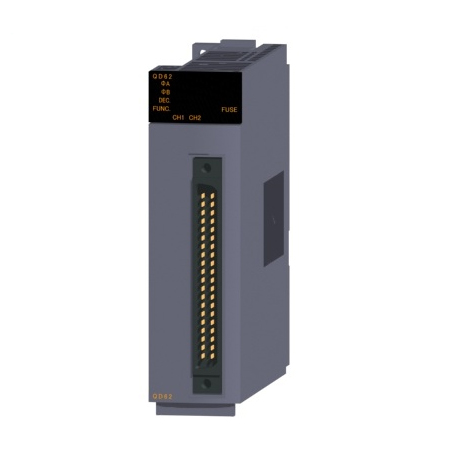

Module bộ đếm Mitsubishi QD62D

Name: Module bộ đếm Mitsubishi QD62D - admin
SKU: QD62D
Price: 6200000 VND
Availability: InStock

6.200.000 ₫

SKU: QD62D
Nhà Sản Xuất: Mitsubishi
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: hóa đơn VAT

Dịch vụ kèm theo:
✓ Lập trình & Sửa chữa PLC Mitsubishi theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời

Mô tả

FA-MOD PLC: Counter Module

Tên sản phẩm	QD62D
Series	MELSEC-Q SERIES
Type	HIGH-SPEED COUNTER
Number of Channels	2
Int. Current Consumption (A)	0,38
Width (mm)	27,4
Height (mm)	98
Depth (mm)	90
Weight (kg)	0,11

High-speed counter/pulse input

Outline
QD62	2 channels, 200/100/10 kpps, count input signal: 5/12/24 V DC, external input: 5/12/24 V DC, coincidence output: transistor output (sink), 40-pin connector
QD62E	2 channels, 200/100/10 kpps, count input signal: 5/12/24 V DC, external input: 5/12/24 V DC, coincidence output: transistor output (source), 40-pin connector
QD62-H01	2 channels, 50 kpps, count input signal: 5/12/24 V DC, external input: 5/12/24 V DC, coincidence output: transistor output (sink), 40-pin connector
QD62-H02	2 channels, 10 kpps, count input signal: 5/12/24 V DC, external input: 5/12/24 V DC, coincidence output: transistor output (sink), 40-pin connector
QD65PD2	2 channels, 8 Mpps/200 kpps; count input signal: differential line driver, 5/12/24 V DC, external input: 5/12/24 V DC (only 24 V DC for general input), coincidence output: transistor output (sink), 40-pin connector x 2
QD63P6	6 channels, 200/100/10 kpps, count input signal: 5 V DC, 40-pin connector
QD62D	2 channels, 500/200/100/10 kpps, count input signal: EIA standard RS-422-A (differential line driver), external input: 5/12/24 V DC, coincidence output: transistor output (sink), 40-pin connector
QD64D2	2 channels, 4 Mpps, count input signal: differential line driver, external input: 24 V DC, coincidence output: transistor output (sink), 40-pin connector
QD65PD2	2 channels, 8 Mpps/200 kpps; count input signal: differential line driver, 5/12/24 V DC, external input: 5/12/24 V DC (only 24 V DC for general input), coincidence output: transistor output (sink), 40-pin connector x 2
