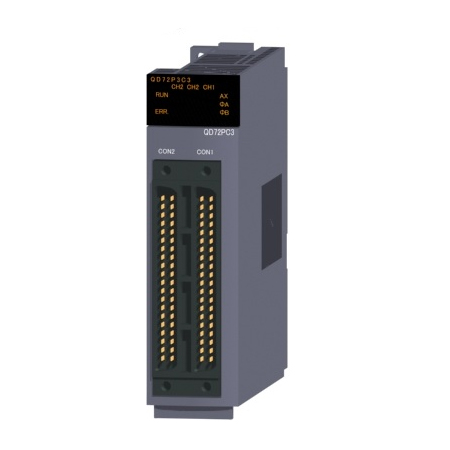

Module điều khiển vị trí Mitsubishi QD72P3C3

Name: Module điều khiển vị trí Mitsubishi QD72P3C3 - admin
SKU: QD72P3C3

SKU: QD72P3C3
Nhà Sản Xuất: Mitsubishi
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: hóa đơn VAT

Dịch vụ kèm theo:
✓ Lập trình & Sửa chữa PLC Mitsubishi theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời

Mô tả

Số trục: 3
Tốc độ: 100kpps
Loại kết nối: Open collector
Dữ liệu điều khiển vị trí: 1/axis

Module điều khiển vị trí Mitsubishi Q Series

Model	Mô tả
Simple motion
QD77GF4	Maximum number of control axis: 4 axes, CC-Link IE Field Network connection
QD77GF8	Maximum number of control axis: 8 axes, CC-Link IE Field Network connection
QD77GF16	Maximum number of control axis: 16 axes, CC-Link IE Field Network connection
QD77MS2	Maximum number of control axis: 2 axes, SSCNET III/H connection
QD77MS4	Maximum number of control axis: 4 axes, SSCNET III/H connection
QD77MS16	Maximum number of control axis: 16 axes, SSCNET III/H connection
Positioning
Specialized functionality type
QD75P1N	1 axis, control unit: mm/inch/degree/pulse, number of positioning data: 600 data/axis, max. output pulse: 200 kpps, 40-pin connector, open collector output
QD75P1	1 axis, control unit: mm/inch/degree/pulse, number of positioning data: 600 data/axis, max. output pulse: 200 kpps, 40-pin connector, open collector output
QD75P2N	2 axes, 2-axis linear interpolation, 2-axis circular interpolation, control unit: mm/inch/degree/pulse, number of positioning data: 600/axis, max. output pulse: 200 kpps, 40-pin connector, open collector output
QD75P2	2 axes, 2-axis linear interpolation, 2-axis circular interpolation, control unit: mm/inch/degree/pulse, number of positioning data: 600/axis, max. output pulse: 200 kpps, 40-pin connector, open collector output
QD75P4N	4 axes, 2-/3-/4-axis linear interpolation, 2-axis circular interpolation, 3-axis helical interpolation, control unit: mm/inch/degree/pulse, number of positioning data: 600/axis, max. output pulse: 200 kpps, 40-pin connector x 2, open collector output
QD75P4	4 axes, 2-/3-/4-axis linear interpolation, 2-axis circular interpolation, control unit: mm/inch/degree/pulse, number of positioning data: 600/axis, max. output pulse: 200 kpps, 40-pin connector x 2, open collector output
QD75D1N	1 axis, control unit: mm/inch/degree/pulse, number of positioning data, 600/axis, max. output pulse: 4 Mpps, 40-pin connector, differential driver output
QD75D1	1 axis, control unit: mm/inch/degree/pulse, number of positioning data, 600/axis, max. output pulse: 1 Mpps, 40-pin connector, differential driver output
QD75D2N	2 axes, 2-axis linear interpolation, 2-axis circular interpolation, control unit: mm/inch/degree/pulse, number of positioning data: 600/axis, max. output pulse, 4 Mpps, 40-pin connector, differential driver output
QD75D2	2 axes, 2-axis linear interpolation, 2-axis circular interpolation, control unit: mm/inch/degree/pulse, number of positioning data: 600/axis, max. output pulse, 1 Mpps, 40-pin connector, differential driver output
QD75D4N	4 axes, 2-/3-/4-axis linear interpolation, 2-axis circular interpolation, 3-axis helical interpolation, control unit: mm/inch/degree/pulse, number of positioning data, 600/axis, max. output pulse: 4 Mpps, 40-pin connector x 2, differential driver output
QD75D4	4 axes, 2-/3-/4-axis linear interpolation, 2 axis circular interpolation, control unit: mm/inch/degree/pulse, number of positioning data: 600/axis, max. output pulse, 1 Mpps, 40-pin connector x 2, differential driver output
QD75MH1	1 axes, Number of positioning data: 600 data/axis. SSCNET III connection
QD75MH2	2 axes, Number of positioning data: 600 data/axis. SSCNET III connection
QD75MH4	4 axes, Number of positioning data: 600 data/axis. SSCNET III connection
QD75M1	1 axes, Number of positioning data: 600 data/axis. SSCNET connection
QD75M2	2 axes, Number of positioning data: 600 data/axis. SSCNET connection
QD75M4	4 axes, Number of positioning data: 600 data/axis. SSCNET connection
Simple control and fast-response type
QD70P4	4 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse: 200 kpps, 40-pin connector, open collector output
QD70P8	8 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse: 200 kpps, 40-pin connector x 2, open collector output
QD70D4	4 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse, 4 Mpps, 40-pin connector x 2, differential driver output
QD70D8	8 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse, 4 Mpps, 40-pin connector x 4, differential driver output
QD74MH8	8 axes, Control unit: PLS only, Number of positioning data: 32 data/axis. SSCNET III connection
QD74MH16	16 axes, Control unit: PLS only, Number of positioning data: 32 data/axis. SSCNET III connection
Built-in counter function type
QD72P3C3	Positioning control: 3 axes, control unit: pulse, number of positioning data: 1/axis, maximum output pulse: 100 kpps, open collector output counter: 3 channels, 100 kpps, count input signal: 5/24 V DC, 40-pin connector x 2
Analog output type
QD73A1	1 axis, number of positioning data: 1 data/axis, analog output
