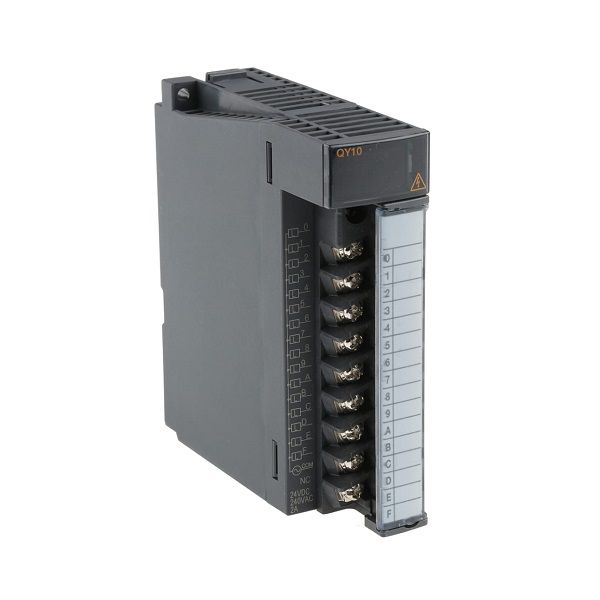

Module Mitsubishi QY10 (16 ngõ ra)

Name: Module Mitsubishi QY10 (16 ngõ ra) - admin
SKU: QY10
Price: 1800000 VND
Availability: InStock

1.800.000 ₫

SKU: QY10
Nhà Sản Xuất: Mitsubishi
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: hóa đơn VAT

Dịch vụ kèm theo:
✓ Lập trình & Sửa chữa PLC Mitsubishi theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời

Mô tả

FA-MOD PLC: Digital Output Module

Tên sản phẩm	QY10
Series	MELSEC-Q SERIES
Type	RELAY OUTPUT
Occupied I/O Points on PLC	16
Integrated Digital Outputs	16
Output Type	RELAY
Rated Load Voltage (VAC)	240
Rated Load Voltage (VDC)	24
Wiring	SCREW
Int. Current Consumption (A)	0,43
Width (mm)	27,4
Height (mm)	98
Depth (mm)	90
Weight (kg)	0,22

Module I/O Mitsubishi Q series

Outline
QX10	AC input: 16 points, 100…120 V AC, 8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 16 points/common, 18-point terminal block
QX10-TS	AC input: 16 points, 100…120 V AC, 8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 16 points/common, 18-point spring-clamp terminal block with indicators
QX28	AC input: 8 points, 100…240 V AC, 17 mA (200 V AC, 60 Hz)/14 mA (200 V AC, 50 Hz)/8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 8 points/common, 18-point terminal block
QX40	DC input: 16 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, positive common type, 18-point terminal block
QX40-S1	DC input: 16 points, 24 V DC 6 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 16 points/common, positive common type, 18-point terminal block
QX40-TS	DC input: 16 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, positive common type, 18-point spring-clamp terminal block with indicators
QX41	DC input, 32 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common: positive common type, 40-pin connector
QX41-S1	DC input: 32 points, 24 V DC 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 32 points/common: positive common type, 40-pin connector
QX41-S2	DC input: 32 points, 24 V DC 6 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, 40-pin connector
QX42	DC input: 64 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common positive common type, 40-pin connector x 2
QX42-S1	DC input: 64 points, 24 V DC 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 32 points/common, positive common type, 40-pin connector x 2
QX40H	DC input: 16 points, 24 V DC 6 mA, response time: 0/0.1/0.2/0.4/0.6/1 ms, 8 points/common, positive common type, 18-point terminal block
QX70H	DC input: 16 points, 5 V DC 6 mA, response time: 0/0.1/0.2/0.4/0.6/1 ms, 8 points/common, positive common type, 18-point terminal block
QX80	DC input: 16 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, negative common type, 18-point terminal block
QX80-TS	DC input: 16 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, negative common type, 18-point spring-clamp terminal block with indicators
QX81	DC input, 32 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, negative common type, 37-pin D-sub connector
QX81-S2	DC input: 32 points, 24 V DC 6 mA, response time: 1/5/10/20/70 ms, 32 points/common, negative common type, 37-pin D-sub connector
QX82	DC input: 64 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, negative common type, 40-pin connector x 2
QX82-S1	DC input: 64 points, 24 V DC 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 32 points/common, negative common type, 40-pin connector x 2
QX80H	DC input: 16 points, 24 V DC 6 mA, response time: 0/0.1/0.2/0.4/0.6/1 ms, 8 points/common, negative common type, 18-point terminal block
QX50	AC/DC input: 16 points, 48 V AC/48 V DC 4 mA, response time: 20 ms, 16 points/common, positive/negative common shared type, 18-point terminal block
QX70	DC input: 16 points, 5/12 V DC 1.2 mA (5 V DC)/3.3 mA (12 V DC), response time: 1/5/10/20/70 ms, 16 points/common: positive/negative common shared type, 18-point terminal block
QX71	DC input: 32 points, 5/12 V DC, 1.2 mA (5 V DC)/3.3 mA (12 V DC), response time: 1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, 40-pin connector
QX72	DC input: 64 points, 5/12 V DC 1.2 mA (5 V DC)/3.3 mA (12 V DC), response time: 1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, 40-pin connector x 2
QX11L	AC input: 32 points, 100…120 V AC 10 mA (100 V AC, 60 Hz), response time: 25 ms, 32 points/common, 38-point terminal block (terminal block sold separately), replacement model: AX11
QX21L	AC input: 32 points, 200…240 V AC 10 mA (220 V AC, 60 Hz), response time: 25 ms, 32 points/common, 38-point terminal block (terminal block sold separately), replacement model: AX21
QY10	Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, 18-point terminal block
QY10-TS	Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, 18-point spring-clamp terminal block with indicators
QY18A	Contact output: 8 points, 24 V DC/240 V AC, 2 A/point, response time: 12 ms, all points independent common, 18-point terminal block
QY22	Triac output: 16 points, 100…240 V AC, 0.6 A/point, 4.8 A/common, response time: 1 ms + 0.5 cycles, 16 points/common, 18-point terminal block
QY40P	Transistor output: 16 points, 12…24 V DC, 0.1 A/point, 1.6 A/common, response time: 1 ms, 16 points/common, sink type, 18-point terminal block
QY40P-TS	Transistor output: 16 points, 12…24 V DC, 0.1 A/point, 1.6 A/common, response time: 1 ms, 16 points/common, sink type, 18-point spring-clamp terminal block with indicators
QY41P	Transistor output: 32 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector
QY42P	Transistor output: 64 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2
QY50	Transistor output: 16 points, 12…24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, sink type, 18-point terminal block
QY41H	Transistor output: 32 points, 5…24 V DC, 0.2 A/point, 2 A/common, response time: 2 µs, 32 points/common, sink type, 40-pin connector
QY68A	Transistor output: 8 points, 5…24 V DC, 2 A/point, 8 A/module, response time: 10 ms, all points independent, sink/source shared type, 18-point terminal block
QY71	Transistor output: 32 points, 5…12 V DC, 16 mA/point, 512 mA/common, 32 points/common, sink type, 40-pin connector
QY80	Transistor output: 16 points, 12…24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, source type, 18-point terminal block
QY80-TS	Transistor output: 16 points, 12…24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, source type, 18-point spring-clamp terminal block with indicators
QY81P	Transistor output: 32 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, source type, 37-pin D-sub connector
QY82P	Transistor output: 64 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, source type, 40-pin connector x 2
QY11AL	Contact output: 16 points, 24 V AC/240 V AC, 2 A/point, 16 A/all points, response time: 12 ms, all points independent common, 38-point terminal block (terminal block sold separately), replacement model: AY10A, AY11A
QY13L	Contact output: 32 points, 24 V AC/240 V AC, 2 A/point, 5 A/common, 8 points/common, 38-point terminal block connector (terminal block sold separately), replacement model: AY13
QY23L	Triac output: 32 points, 100…240 V AC, 0.6 A/point, 2.4 A/common, response time: 1 ms + 0.5 cycles, 8 points/common, 38-point terminal block connector (terminal block sold separately), replacement model: AY23
QY51PL	Transistor output: 32 points, 12…24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, sink type, 18-point terminal block connector (terminal block sold separately), replacement model: AY41, AY41P, AY51, AY51-S1
QH42P	DC input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, transistor output: 32 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2, number of occupied I/O points: 32 points
QX48Y57	DC input: 8 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 8 points/common, positive common type, transistor output: 7 points, 12…24 V DC, 0.5 A/point, 2 A/common, response time: 1 ms, 7 points/common, sink type, 18-point terminal block
QX41Y41P	DC input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, transistor output: 32 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2, number of occupied I/O points: 64 points
QI60	Interrupt input: 16 points, 24 V DC, 6 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 16 points/common, positive common type, 18-point terminal block
