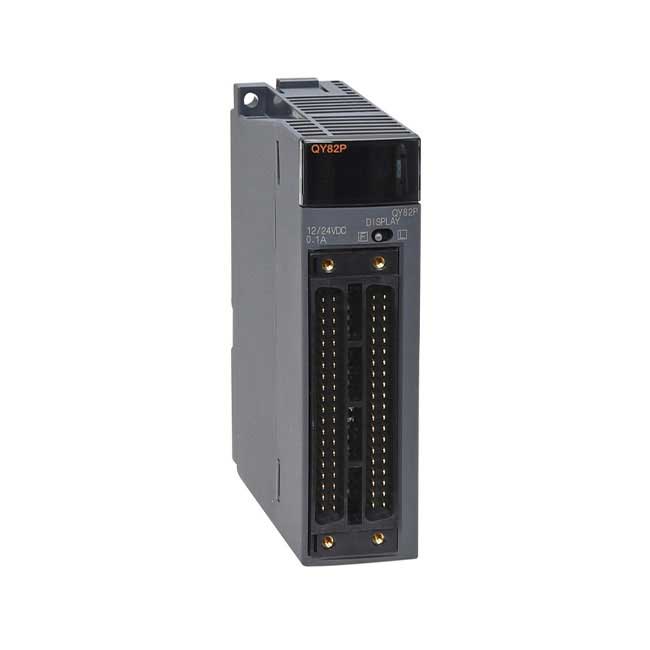

Module Mitsubishi QY82P (64 ngõ ra)

Name: Module Mitsubishi QY82P (64 ngõ ra) - admin
SKU: QY82P
Price: 4900000 VND
Availability: InStock

4.900.000 ₫

SKU: QY82P
Nhà Sản Xuất: Mitsubishi
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: hóa đơn VAT

Dịch vụ kèm theo:
✓ Lập trình & Sửa chữa PLC Mitsubishi theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời

Mô tả

Model	QY82P
Series	MELSEC-Q SERIES
Type	TRANSISTOR OUTPUT (SOURCE)
Power Supply (V)	12-24
Current Type	DC
Occupied I/O Points on PLC	64
Integrated Digital Outputs	64
Output Type	TRANSISTOR
Output Logic	SOURCE
Rated Load Voltage (VDC)	12-24
Wiring	CONNECTOR
Int. Current Consumption (A)	0,16
Width (mm)	27,4
Height (mm)	98
Depth (mm)	90
Weight (kg)	0,17

Module I/O Mitsubishi Q series

Outline
QX10	AC input: 16 points, 100…120 V AC, 8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 16 points/common, 18-point terminal block
QX10-TS	AC input: 16 points, 100…120 V AC, 8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 16 points/common, 18-point spring-clamp terminal block with indicators
QX28	AC input: 8 points, 100…240 V AC, 17 mA (200 V AC, 60 Hz)/14 mA (200 V AC, 50 Hz)/8 mA (100 V AC, 60 Hz)/7 mA (100 V AC, 50 Hz), response time: 20 ms, 8 points/common, 18-point terminal block
QX40	DC input: 16 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, positive common type, 18-point terminal block
QX40-S1	DC input: 16 points, 24 V DC 6 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 16 points/common, positive common type, 18-point terminal block
QX40-TS	DC input: 16 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, positive common type, 18-point spring-clamp terminal block with indicators
QX41	DC input, 32 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common: positive common type, 40-pin connector
QX41-S1	DC input: 32 points, 24 V DC 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 32 points/common: positive common type, 40-pin connector
QX41-S2	DC input: 32 points, 24 V DC 6 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, 40-pin connector
QX42	DC input: 64 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common positive common type, 40-pin connector x 2
QX42-S1	DC input: 64 points, 24 V DC 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 32 points/common, positive common type, 40-pin connector x 2
QX40H	DC input: 16 points, 24 V DC 6 mA, response time: 0/0.1/0.2/0.4/0.6/1 ms, 8 points/common, positive common type, 18-point terminal block
QX70H	DC input: 16 points, 5 V DC 6 mA, response time: 0/0.1/0.2/0.4/0.6/1 ms, 8 points/common, positive common type, 18-point terminal block
QX80	DC input: 16 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, negative common type, 18-point terminal block
QX80-TS	DC input: 16 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 16 points/common, negative common type, 18-point spring-clamp terminal block with indicators
QX81	DC input, 32 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, negative common type, 37-pin D-sub connector
QX81-S2	DC input: 32 points, 24 V DC 6 mA, response time: 1/5/10/20/70 ms, 32 points/common, negative common type, 37-pin D-sub connector
QX82	DC input: 64 points, 24 V DC 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, negative common type, 40-pin connector x 2
QX82-S1	DC input: 64 points, 24 V DC 4 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 32 points/common, negative common type, 40-pin connector x 2
QX80H	DC input: 16 points, 24 V DC 6 mA, response time: 0/0.1/0.2/0.4/0.6/1 ms, 8 points/common, negative common type, 18-point terminal block
QX50	AC/DC input: 16 points, 48 V AC/48 V DC 4 mA, response time: 20 ms, 16 points/common, positive/negative common shared type, 18-point terminal block
QX70	DC input: 16 points, 5/12 V DC 1.2 mA (5 V DC)/3.3 mA (12 V DC), response time: 1/5/10/20/70 ms, 16 points/common: positive/negative common shared type, 18-point terminal block
QX71	DC input: 32 points, 5/12 V DC, 1.2 mA (5 V DC)/3.3 mA (12 V DC), response time: 1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, 40-pin connector
QX72	DC input: 64 points, 5/12 V DC 1.2 mA (5 V DC)/3.3 mA (12 V DC), response time: 1/5/10/20/70 ms, 32 points/common, positive/negative common shared type, 40-pin connector x 2
QX11L	AC input: 32 points, 100…120 V AC 10 mA (100 V AC, 60 Hz), response time: 25 ms, 32 points/common, 38-point terminal block (terminal block sold separately), replacement model: AX11
QX21L	AC input: 32 points, 200…240 V AC 10 mA (220 V AC, 60 Hz), response time: 25 ms, 32 points/common, 38-point terminal block (terminal block sold separately), replacement model: AX21
QY10	Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, 18-point terminal block
QY10-TS	Contact output: 16 points, 24 V DC/240 V AC, 2 A/point, 8 A/common, response time: 12 ms, 16 points/common, 18-point spring-clamp terminal block with indicators
QY18A	Contact output: 8 points, 24 V DC/240 V AC, 2 A/point, response time: 12 ms, all points independent common, 18-point terminal block
QY22	Triac output: 16 points, 100…240 V AC, 0.6 A/point, 4.8 A/common, response time: 1 ms + 0.5 cycles, 16 points/common, 18-point terminal block
QY40P	Transistor output: 16 points, 12…24 V DC, 0.1 A/point, 1.6 A/common, response time: 1 ms, 16 points/common, sink type, 18-point terminal block
QY40P-TS	Transistor output: 16 points, 12…24 V DC, 0.1 A/point, 1.6 A/common, response time: 1 ms, 16 points/common, sink type, 18-point spring-clamp terminal block with indicators
QY41P	Transistor output: 32 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector
QY42P	Transistor output: 64 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2
QY50	Transistor output: 16 points, 12…24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, sink type, 18-point terminal block
QY41H	Transistor output: 32 points, 5…24 V DC, 0.2 A/point, 2 A/common, response time: 2 µs, 32 points/common, sink type, 40-pin connector
QY68A	Transistor output: 8 points, 5…24 V DC, 2 A/point, 8 A/module, response time: 10 ms, all points independent, sink/source shared type, 18-point terminal block
QY71	Transistor output: 32 points, 5…12 V DC, 16 mA/point, 512 mA/common, 32 points/common, sink type, 40-pin connector
QY80	Transistor output: 16 points, 12…24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, source type, 18-point terminal block
QY80-TS	Transistor output: 16 points, 12…24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, source type, 18-point spring-clamp terminal block with indicators
QY81P	Transistor output: 32 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, source type, 37-pin D-sub connector
QY82P	Transistor output: 64 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, source type, 40-pin connector x 2
QY11AL	Contact output: 16 points, 24 V AC/240 V AC, 2 A/point, 16 A/all points, response time: 12 ms, all points independent common, 38-point terminal block (terminal block sold separately), replacement model: AY10A, AY11A
QY13L	Contact output: 32 points, 24 V AC/240 V AC, 2 A/point, 5 A/common, 8 points/common, 38-point terminal block connector (terminal block sold separately), replacement model: AY13
QY23L	Triac output: 32 points, 100…240 V AC, 0.6 A/point, 2.4 A/common, response time: 1 ms + 0.5 cycles, 8 points/common, 38-point terminal block connector (terminal block sold separately), replacement model: AY23
QY51PL	Transistor output: 32 points, 12…24 V DC, 0.5 A/point, 4 A/common, response time: 1 ms, 16 points/common, sink type, 18-point terminal block connector (terminal block sold separately), replacement model: AY41, AY41P, AY51, AY51-S1
QH42P	DC input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, transistor output: 32 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2, number of occupied I/O points: 32 points
QX48Y57	DC input: 8 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 8 points/common, positive common type, transistor output: 7 points, 12…24 V DC, 0.5 A/point, 2 A/common, response time: 1 ms, 7 points/common, sink type, 18-point terminal block
QX41Y41P	DC input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, transistor output: 32 points, 12…24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2, number of occupied I/O points: 64 points
QI60	Interrupt input: 16 points, 24 V DC, 6 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 16 points/common, positive common type, 18-point terminal block
