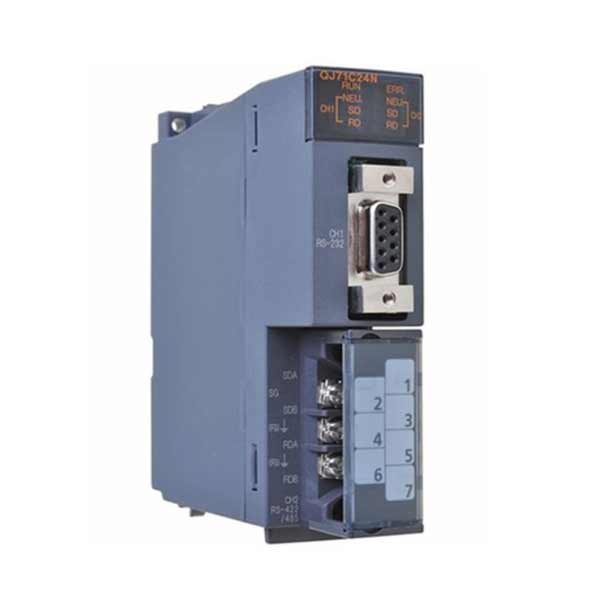

Module truyền thông Mitsubishi QJ71C24N (RS-232/RS-422/485)

Name: Module truyền thông Mitsubishi QJ71C24N (RS-232/RS-422/485) - admin
SKU: QJ71C24N
Price: 6900000 VND
Availability: InStock

6.900.000 ₫

SKU: QJ71C24N
Nhà Sản Xuất: Mitsubishi
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: hóa đơn VAT

Dịch vụ kèm theo:
✓ Lập trình & Sửa chữa PLC Mitsubishi theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời

Mô tả

Mục	Thông tin
SKU	QJ71C24N
Interface	CH.1: RS-232 compliant (D-Sub 9P)
	CH.2: RS-422/485-compliant (2-piece terminal block)
Communication Method	Full-duplex / Half-duplex Communication
MELSEC Communication Protocol	Half-duplex communication
Communication Protocol	Full-duplex / Half-duplex Communication
Nonprocedural Protocol	Full-duplex / Half-duplex Communication
Bidirectional Protocol	Full-duplex / Half-duplex Communication
Synchronization Method	Asynchronous method
Transmission Speed	50 to 230,400 bps (CH1), max 115,200 bps (CH2)
Data Format	Start Bit: 1
	Data Bit: 7/8
	Parity Bit: 1 (Vertical parity) / None
	Stop Bit: 1/2
Access Cycle	MELSEC: Processed in CPU END cycle
	Communication Protocol: Executed by command
Error Detection	Parity Check: Available (odd/even selectable)
	Checksum Code: Available based on protocol
Transmission Control (RS-232)	DTR/DSR, RS/CS, CD Signal, Xon/Xoff, DC2/DC4 Control: Available
Transmission Control (RS-422/485)	Xon/Xoff, DC2/DC4 Control: Available
Circuit Configuration (RS-232)	1:1 Communication
Circuit Configuration (RS-422/485)	1:1, 1:n, m:n (max 32 devices)
Transmitting Distance	RS-232: Max 15 m
	RS-422/485: Max 1,200 m
Number of Occupied I/O	32 points
Power Consumption	5V DC, 0.31A
Dimensions	H: 98 mm, W: 27.4 mm, D: 90 mm
Weight	0.20 kg

Sử dụng mở rộng cổng truyền thông cho PLC Mitsubishi Q00CPU, Q00UJCPU, Q01CPU, Q02CPU, Q02UCPU, Q02HCPU, Q03UDECPU, Q04UDEHCPU, Q06HCPU, …

Medium categories
MES interface	QJ71MES96N	10BASE-T/100BASE-TX: 1 channel, data link with the IT system (MES) database
MES interface	QJ71MES96	10BASE-T/100BASE-TX: 1 channel, data link with the IT system (MES) database
MES interface	QJ71WS96-MES	Product package including QJ71WS96 and MX MESInterface-WS. For the first time, please use QJ71MES96.
High speed data communication	QJ71DC96	10BASE-T/100BASE-TX, label function, streaming transfer function
High speed data logger	QD81DL96	10BASE-T/100BASE-TX: 1 channel, data logging function, event logging function, report function, recipe function
Web server	QJ71WS96	10BASE-T/100BASE-TX: 1 channel, RS-232: 1 channel, Web server function (remote monitoring via Internet/data logging/data write/event notification)
Ethernet	QJ71E71-100	10BASE-T/100BASE-TX
Ethernet	QJ71E71-B2	10BASE2
Ethernet	QJ71E71-B5	10BASE5
Ethernet	QJ71E71	10BASE-T/10BASE5
CC-Link IE Control	QJ71GP21-SX	CC-Link IE Controller Network module (fiber-optic cable), control/normal station
CC-Link IE Control	QJ71GP21S-SX	CC-Link IE Controller Network module (fiber-optic cable), control/normal station, with external power supply function
CC-Link IE Field	QJ71GF11-T2	CC-Link IE Field Network, master/local station
MELSECNET/H	QJ71LP21-25	MELSECNET/H PLC to PLC network, control/normal station, MELSECNET/H remote I/O network, remote master station, optical loop system connection cable: SI/QSI/H-PCF/broadband H-PCF optical cable, transmission path format: duplex loop
MELSECNET/H	QJ71LP21	MELSECNET/H PLC to PLC network, control/normal station, MELSECNET/H remote I/O network, remote master station, optical loop system, connection cable: SI/QSI/H-PCF/broadband H-PCF optical cable, transmission path format: duplex loop
MELSECNET/H	QJ71LP21S-25	MELSECNET/H PLC to PLC network, control/normal station, MELSECNET/H remote I/O network, remote master station, optical loop system, connection cable: SI/QSI/H-PCF/broadband H-PCF optical cable, transmission path format: duplex loop, external power supply function
MELSECNET/H	QJ72LP25-25	MELSECNET/H Remote I/O network, remote I/O station, optical loop system, connection cable: SI/QSI/H-PCF/broadband H-PCF optical cable, transmission path format: duplex loop
MELSECNET/H	QJ71LP21G	MELSECNET/H PLC to PLC network, control/normal station, MELSECNET/H remote I/O network, remote master station, optical loop system, connection cable: GI-50/125 optical cable, transmission path format: duplex loop
MELSECNET/H	QJ71LP21GE	MELSECNET/H PLC to PLC Network control/normal station, MELSECNET/H remote I/O network, remote master station, optical loop system, connection cable: GI-62.5/125 optical cable, transmission path format: duplex loop
MELSECNET/H	QJ72LP25G	MELSECNET/H remote I/O network remote I/O station, optical loop system, connection cable: GI-50/125 optical cable, transmission path format: duplex loop
MELSECNET/H	QJ72LP25GE	MELSECNET/H remote I/O network, remote I/O station, optical loop system, connection cable: GI-62.5/125 optical cable, transmission path format: duplex loop
MELSECNET/H	QJ71NT11B	MELSECNET/H PLC to PLC network, control/normal station, twisted bus system, connection cable: shielded twisted pair cable or CC-Link Ver.1.10-compatible cable, transmission path format: bus (RS-485)
MELSECNET/H	QJ71BR11	MELSECNET/H PLC to PLC network, control/normal station, MELSECNET/H remote I/O network, remote master station, coaxial bus system, connection cable: 3C-2V/5C-2V/5C-FB, coaxial cable, transmission path format: single bus
MELSECNET/H	QJ72BR15	MELSECNET/H remote I/O network, remote I/O station, coaxial bus system, connection cable: 3C-2V/5C-2V/5C-FB coaxial cable, transmission path format: single bus
CC-Link	QJ61BT11N	CC-Link Ver.2 compatible master/local station
CC-Link	QJ61BT11	CC-Link master/local station
CC-Link/LT	QJ61CL12	CC-Link/LT master station
AnyWire	QJ51AW12AL	Master station, AnyWireASLINK system compatible, powered by Anywire
AnyWire	QJ51AW12D2	Master station, AnyWire DB A20 system compatible, powered by Anywire
MELSECNET(II)(/B)	A1SJ71AP23Q	MELSECNET (II) local station, SI optical cable, dual loop
MELSECNET(II)(/B)	A1SJ71AR23Q	MELSECNET (II) local station, 3C-2V/5C-2V coaxial cable, duplex loop
MELSECNET(II)(/B)	A1SJ71AT23BQ	MELSECNET/B local station, shielded twisted pair cable, single bus
MODBUS	QJ71MB91	MODBUS® RTU/MODBUS® ASCII master/slave function RS-232, RS-422/485
MODBUS/TCP	QJ71MT91	MODBUS®/TCP master/slave function, 10BASE-T/100BASE-TX
FL-net (OPCN-2)	QJ71FL71-T-F01	FL-net (OPCN-2) Ver.2.00 10BASE-T/100BASE-TX
FL-net (OPCN-2)	QJ71FL71-B2-F01	FL-net (OPCN-2) Ver.2.00 10BASE2
FL-net (OPCN-2)	QJ71FL71-B5-F01	FL-net (OPCN-2) Ver.2.00 10BASE5
FL-net (OPCN-2)	QJ71FL71-F01	FL-net (OPCN-2) Ver.2.00 10BASE5/10BASE-T
FL-net (OPCN-2)	QJ71FL71-T	FL-net (OPCN-2) Ver.1.00 10BASE-T
FL-net (OPCN-2)	QJ71FL71-B2	FL-net (OPCN-2) Ver.1.00 10BASE2
FL-net (OPCN-2)	QJ71FL71-B5	FL-net (OPCN-2) Ver.1.00 10BASE5
FL-net (OPCN-2)	QJ71FL71	FL-net (OPCN-2) Ver.1.00 10BASE5/10BASE-T
EtherNet/IP	QJ71EIP71	Ethernet/IP network interface
PROFIBUS-DP	QJ71PB92V	PROFIBUS® system compatible, DP master/slave
PROFIBUS-DP	QJ71PB93D	PROFIBUS® system compatible, DP master/slave
AS-i	QJ71AS92	AS-Interface Specification Version 2.11 compatible master station
DeviceNet	QJ71DN91	DeviceNet® master/slave shared module
Serial communication	QJ71C24N	RS-232: 1 channel, RS-422/485: 1 channel, transmission speed: 230.4 kbps with 2 channels
Serial communication	QJ71C24	RS-232: 1 channel, RS-422/485: 1 channel, transmission speed: 115.2 kbps with 2 channels
Serial communication	QJ71C24N-R2	RS-232: 2 channels, transmission speed: 230.4 kbps with 2 channels
Serial communication	QJ71C24-R2	RS-232: 2 channels, transmission speed: 115.2 kbps with 2 channels
Serial communication	QJ71C24N-R4	RS-422/485: 2 channels, transmission speed: 230.4 kbps with 2 channels
Intelligent communication	QD51	Module for running BASIC program, RS-232: 2 channels
Intelligent communication	QD51-R24	Module for running BASIC program, RS-232: 1 channel, RS-422/485: 1 channel
ID interface	QD35ID1	1 reader writer connectable, for QCPU
ID interface	QD35ID2	2 reader writer connectable, for QCPU
