Mô tả

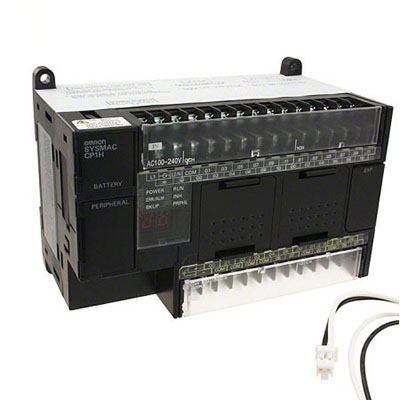

| Tên sản phẩm | Bộ điều khiển CP1H-XA40DR-A Omron |
| Số ngõ vào, ra | 24 ngõ vào và 16 ngõ ra |
| Nguồn cấp | 100-240VAC |
| Kiểu ngõ ra | Relay output |
| Tốc độ thực hiện lệnh | Lệnh cơ bản: 0.01µs; Lệnh đặc biệt: 0.15µs |
| Bộ nhớ chương trình | 20Ksteps |
| Bộ đếm tốc độ cao | 100 kHz (single-phase), 50 kHz (differential phases), 4 axes |
| Ngõ ra xung tốc độ cao | 100 kHz for 4 axes |
| Cổng truyền thông | Trang bị sẵn cổng USB, chọn lựa thêm RS232C, RS422/RS485 |
| Ngõ vào Analog | 4 |
| Ngõ ra Anaglog | 2 |
| Có thể gắn thêm | 7 bộ mở rộng CPM1 và 2 bộ mở rộng CJ1W |
| Chức năng | Thời gian thực (Clock) |
| Nhiệt độ làm việc | 0~55oC |
| Tiêu chuẩn | IEC 61000; JIS C0040; JIS C0041 |
Omron CP1H
| SKU | Điện áp ngõ vào | Ngõ vào | Ngõ ra |
|---|---|---|---|
| CP1H-Y20DT-D | 24VDC | 12 Input DC | 8 Output relay |
| CP1H-X40DR-A | 100-240V | 24 Input DC | 16 Output relay |
| CP1H-XA40DR-A | 100-240V | 24 Input DC | 16 Output relay |
| CP1H-X40DT-D | 24VDC | 24 Input DC | 16 Output transistor |
| CP1H-X40DT1-D | 24VDC | 24 Input DC | 16 Output transistor |
| CP1H-XA40DT-D | 24VDC | 24 Input DC | 16 Output transistor |
| Module | Mô tả |
|---|---|
| Digital Module | |
| CP1W-8ED | Module digital, 8 Input DC |
| CP1W-8ER | Module digital, 8 Output Relay |
| CP1W-16ER | Module digital, 16 Output Relay |
| CP1W-32ER | Module digital, 32 Output Relay |
| CP1W-20EDR1 | Module digital, 12 Input DC / 8 Output Relay |
| CP1W-40EDR | Module digital, 24 Input DC / 16 Output Relay |
| Analog, Temperature Module | |
| CP1W-AD041 | Module analog 4 Input |
| CP1W-DA021 | Module analog 2 Input |
| CP1W-DA041 | Module analog 4 Output |
| CP1W-MAD11 | Module analog 2 Input – 1 Output |
| CP1W-MAD42 | Module analog 4 Input – 2 Output |
| CP1W-MAD44 | Module analog 4 Input – 4 Output |
| CP1W-TS001 | Module nhiệt độ Thermocoup Input, 2 kênh |
| CP1W-TS002 | Module nhiệt độ Thermocoup Input, 4 kênh |
| CP1W-TS101 | Module nhiệt độ Pt100 input, 2 kênh |
| CP1W-TS102 | Module nhiệt độ Pt100 Input, 4 kênh |
| Other Module | |
| CP1W-CIF01 | Module truyền thông RS-232 |
| CP1W-CIF11 | Module truyền thông RS-422/485 (50m) |
| CP1W-CIF12 | Module truyền thông RS-422/485 (500m) |
| CP1W-CIF41 | Module truyền thông Ethernet TCP/IP |
| CP1W-SRT21 | Module truyền thông CompoBus/S slave 8 inputs and 8 outputs |
| CP1W-CN811 | Cáp nối Module mở rộng |
| CP1W-BAT01 | Nguồn nuôi bộ nhớ dự phòng |
| Name | Specifications | Model |
|---|---|---|
| CJ Unit Adapter | Adapter for connecting CJ-series Special I/O Units and CPU Bus Units (includes CJ-series End Cover and 2 End Plates) |
CP1W-EXT01 |
| Analog Input Units |
4 inputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), -5 to 5 V (1/20,000), -10 to 10 V (1/40,000), and 4 to 20 mA (1/10,000)) Conversion Period: 20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points |
CJ1W-AD042 |
| 8 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 μs/ input max. (Can be set to 1/4,000 resolution and 1 ms/input.) |
CJ1W-AD081-V1 | |
| 4 inputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/8,000, Conversion speed: 250 μs/ input max. (Can be set to 1/4,000 resolution and 1 ms/input.) |
CJ1W-AD041-V1 | |
| Analog Output Units |
4 outputs (1 to 5 V (1/10,000), 0 to 10 V (1/20,000), and -10 to 10 V (1/40,000) Conversion Period: 20 μs/1 point, 25 μs/2 points, 30 μs/3 points, 35 μs/4 points |
CJ1W-DA042V |
| 8 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8000, 250 μs/output.) |
CJ1W-DA08V | |
| 8 outputs (4 to 20 mA) Resolution: 1/4,000; Conversion speed: 1 ms/output max. (Can be set to 1/8,000, 250 μs/ output.) |
CJ1W-DA08C | |
| 4 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max. |
CJ1W-DA041 | |
| 2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4,000, Conversion speed: 1ms/point max. |
CJ1W-DA021 | |
| Analog I/O Unit | 4 inputs, 2 outputs (1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA) Resolution: 1/4000; Conversion speed: 1 ms/point max. (Can be set to 1/8,000, 500 μs/point.) |
CJ1W-MAD42 |
| Process Input Units |
4 fully universal inputs: Pt100 (3-wire), JPt100 (3- wire), Pt1000 (3-wire), Pt100 (4 wire), K, J, T, E, L, U, N, R, S, B, WRe5-26, PLII, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 1.25 V, 0 to 5 V, 0 to 10 V, ±100-mV selectable range, -1.25 to 1.25 V, -5 to 5 V, -10 to 10 V, ±10-V selectable range Potentiometer resolution/conversion speed: 1/256,000 (conversion cycle: 60 ms/4 points), 1/64,000 (conversion cycle: 10 ms/4 points), 1/16,000 (conversion cycle: 5 ms/4 points) |
CJ1W-PH41U * |
| 4 fully universal inputs: Pt100, JPt100, Pt1000, K, J, T, L, R, S, B, 4 to 20 mA, 0 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 V Conversion speed: 250 ms/4 points |
CJ1W-AD04U | |
| 4 inputs, B, J, K, L, R, S, T; Conversion speed: 250 ms/4 inputs |
CJ1W-PTS51 | |
| 4 inputs, Pt100 Ω (JIS, IEC), JPt100 Ω, Conversion speed: 250 ms/4 inputs |
CJ1W-PTS52 | |
| 2 inputs, B, E, J, K, L, N, R, S, T, U, W, Re5-26, PL ±100 mV, Resolution: 1/64,000; Conversion speed: 10 ms/2 inputs |
CJ1W-PTS15 | |
| 2 inputs, 0 to 1.25 V, -1.25 to 1.25 V, 0 to 5 V, 1 to 5 V, -5 to 5 V, 0 to 10 V, -10 to 10 V, ±10-V selectable range, 0 to 20 mA, 4 to 20 mA |
CJ1W-PDC15 | |
| Temperature Control Units |
4 loops, thermocouple input, NPN output | CJ1W-TC001 |
| 4 loops, thermocouple input, PNP output | CJ1W-TC002 | |
| 2 loops, thermocouple input, NPN output, heater burnout detection function |
CJ1W-TC003 | |
| 2 loops, thermocouple input, PNP output, heater burnout detection function |
CJ1W-TC004 | |
| 4 loops, platinum resistance thermometer input, NPN output |
CJ1W-TC101 | |
| 4 loops, platinum resistance thermometer input, PNP output |
CJ1W-TC102 | |
| 2 loops, platinum resistance thermometer input, NPN output, heater burnout detection function |
CJ1W-TC103 | |
| 2 loops, platinum resistance thermometer input, PNP output, heater burnout detection function |
CJ1W-TC104 | |
| High-speed Counter Unit |
2 inputs, max. input frequency: 500 kpps | CJ1W-CT021 |
| Position Control Units |
Pulse train, open collector output, 1 axis | CJ1W-NC113 |
| Pulse train, open collector output, 2 axes | CJ1W-NC213 | |
| Pulse train, open collector output, 4 axes | CJ1W-NC413 | |
| Pulse train, line driver output, 1 axis | CJ1W-NC133 | |
| Pulse train, line driver output, 2 axes | CJ1W-NC233 | |
| Pulse train, line driver output, 4 axes | CJ1W-NC433 | |
| Space Unit | — | CJ1W-SP001 |
| ID Sensor Units | For V680 Series, 1 R/W Head | CJ1W-V680C11 |
| For V680 Series, 2 R/W Heads | CJ1W-V680C12 | |
| For V600 Series, 1 R/W Head | CJ1W-V600C11 | |
| For V600 Series, 2 R/W Heads | CJ1W-V600C12 | |
| CompoNet Master Unit |
Word slaves: 2,048 points, Bit slaves: 512 points | CJ1W-CRM21 |
| CompoBus/S Master Unit |
CompoBus/S remote I/O, 256 points max. | CJ1W-SRM21 |
| Controller Link Units |
Wired (shielded twisted-pair cable) | CJ1W-CLK23 |
| Serial Communications Units |
1 RS-232C port and 1 RS-422A/485 port | CJ1W-SCU42 |
| 2 RS-232C ports | CJ1W-SCU22 | |
| 2 RS-422A/485 ports | CJ1W-SCU32 | |
| 1 RS-232C port and 1 RS-422A/485 port | CJ1W-SCU41-V1 | |
| 2 RS-232C ports | CJ1W-SCU21-V1 | |
| 2 RS-422A/485 ports | CJ1W-SCU31-V1 | |
| EtherNet/IP Unit | Shielded twisted-pair cable (STP), category 5 or 5e or higher Tag data links and message communications supported |
CJ1W-EIP21 |
| Ethernet Unit | 100Base-TX | CJ1W-ETN21 |
| DeviceNetTM Unit | Functions as master and/or slave; allows control of 32,000 points max. per master |
CJ1W-DRM21 |
| MECHATROLINK-II Position Control Unit | 2 axes | CJ1W-NC271 |
| 4 axes | CJ1W-NC471 | |
| 16 axes | CJ1W-NCF71 | |
| 16 axes | CJ1W-NCF71-MA | |
| Fl-net Unit | 100Base-TX | CJ1W-FLN22 |
| SPU | High-speed Data Storage Unit | CJ1W-SPU01-V2 |
