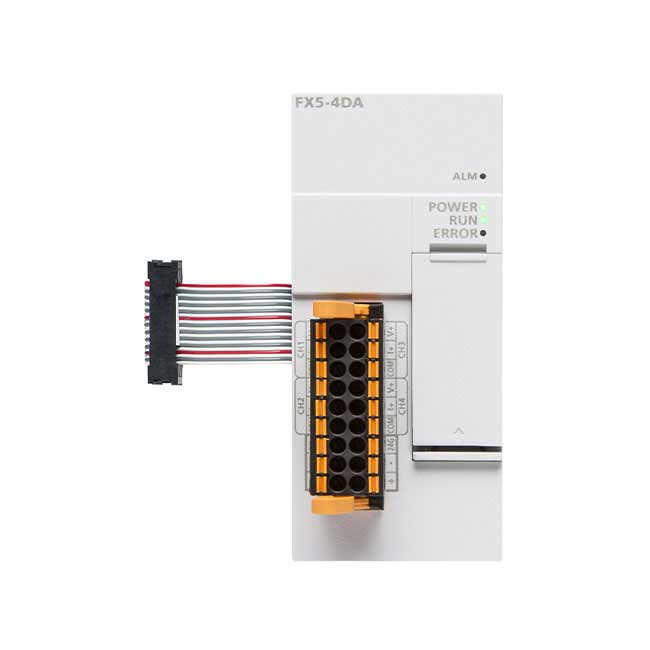

Module Mitsubishi FX5-4DA (4 ngõ ra)

Name: Module Mitsubishi FX5-4DA (4 ngõ ra) - admin
SKU: FX5-4DA
Price: 5200000 VND
Availability: InStock

5.200.000 ₫

SKU: FX5-4DA
Nhà Sản Xuất: Mitsubishi
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: hóa đơn VAT

Dịch vụ kèm theo:
✓ Lập trình & Sửa chữa PLC Mitsubishi theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời

Mô tả

Model	FX5-4DA
Series	MELSEC IQ-F SERIES
Type	ANALOG OUTPUT
Power Supply (V)	24
Current Type	DC
Integrated Analogue Outputs	4
Output Voltage Range (V)	-10-10; 0-10; 0-5; 1-5
Output Current Range (mA)	0-20; 4-20
Min. Ambient Temperature (°C)	0
Max. Ambient Temperature (°C)	55
Width (mm)	40
Height (mm)	90
Depth (mm)	102,2
Weight (kg)	0,2

MELSEC iQ-F Series Module

Model	Mô tả
Analog Control module
FX5-4A-ADP	FX5 Analog I/O expansion adapter; 2 inputs, 2 outputs; voltage/current
FX5-4AD	FX5;Analog Input Module;4 channels
FX5-4AD-ADP	FX5;Analog Input Module;4 channels
FX5-4DA	FX5;Analog Output Module;4 channels
FX5-4DA-ADP	FX5;Analog Output Module;4 channels
FX5-8AD	FX5;Analog Input Module;Pt100/Ni100/K/J/T/B/R/S;8 channels
High-Speed Counting module
FX5-16ET/ES-H	FX5;High-speed I/O Module;2x 200kHz Counter;2x 200kpps Pulse Outputs;sink
FX5-16ET/ESS-H	FX5;High-speed I/O Module;2x 200kHz Counter;2x 200kpps Pulse Outputs;source
I/O
FX5-16ER/ES	FX5;I/O Extension;8 Inputs;8 Relay Outputs
FX5-16ET/ES	FX5;I/O Extension;8 Inputs;8 Transistor Outputs;sink
FX5-16ET/ES-H	FX5;High-speed I/O Module;2x 200kHz Counter;2x 200kpps Pulse Outputs;sink
FX5-16ET/ESS	FX5;I/O Extension;8 Inputs;8 Transistor Outputs;source
FX5-16ET/ESS-H	FX5;High-speed I/O Module;2x 200kHz Counter;2x 200kpps Pulse Outputs;source
FX5-16EX/ES	FX5;I/O Extension;16 Inputs
FX5-16EYR/ES	FX5;I/O Extension;16 Relay Outputs
FX5-16EYT/ES	FX5;I/O Extension;16 Transistor Outputs;sink
FX5-16EYT/ESS	FX5;I/O Extension;16 Transistor Outputs;source
FX5-32ER/DS	FX5;I/O Extension;DC;16 Inputs;16 Relay Outputs
FX5-32ER/ES	FX5;I/O Extension;AC;16 Inputs;16 Relay Outputs
FX5-32ET/DS	FX5;I/O Extension;DC;16 Inputs;16 Transistor Outputs;sink
FX5-32ET/DSS	FX5;I/O Extension;DC;16 Inputs;16 Transistor Outputs;source
FX5-32ET/ES	FX5;I/O Extension;AC;16 Inputs;16 Transistor Outputs;sink
FX5-32ET/ESS	FX5;I/O Extension;AC;16 Inputs;16 Transistor Outputs;source
FX5-8EX/ES	FX5;I/O Extension;8 Inputs
FX5-8EYR/ES	FX5;I/O Extension;8 Relay Outputs
FX5-8EYT/ES	FX5;I/O Extension;8 Transistor Outputs;sink
FX5-8EYT/ESS	FX5;I/O Extension;8 Transistor Outputs;source
FX5-C16EX/D	FX5UC;I/O Extension;16 Inputs;sink
FX5-C16EX/DS	FX5UC;I/O Extension;16 Inputs;source
FX5-C16EYR/D-TS	FX5UC;I/O Extension;16 Relay Outputs;spring clamp
FX5-C16EYT/D	FX5UC;I/O Extension;16 Transistor Outputs;sink
FX5-C16EYT/DSS	FX5UC;I/O Extension;16 Transistor Outputs;source
FX5-C32ET/D	FX5UC;I/O Extension;16 Inputs;16 Transistor Outputs;sink
FX5-C32ET/DS-TS	FX5UC;I/O Extension;16 Inputs;16 Transistor Outputs;spring clamp;sink
FX5-C32ET/DSS	FX5UC;I/O Extension;16 Inputs;16 Transistor Outputs;source
FX5-C32ET/DSS-TS	FX5UC;I/O Extension;16 Inputs;16 Transistor Outputs;spring clamp;source
FX5-C32EX/D	FX5UC;I/O Extension;32 Inputs;sink
FX5-C32EX/DS	FX5UC;I/O Extension;32 Inputs;source
FX5-C32EX/DS-TS	FX5UC;I/O Extension;32 Inputs;spring clamp;source
FX5-C32EYT/D	FX5UC;I/O Extension;32 Transistor Outputs;sink
FX5-C32EYT/D-TS	FX5UC;I/O Extension;32 Transistor Outputs;spring clamp;sink
FX5-C32EYT/DSS	FX5UC;I/O Extension;32 Transistor Outputs;source
FX5-C32EYT/DSS-TS	FX5UC;I/O Extension;32 Transistor Outputs;spring clamp;source
FX5-SF-8DI4	PLC Safety Extension Module; iQ-F; 8 (4 redundant) inputs
FX5-SF-MU4T5	PLC Safety Main Module; iQ-F; 4 (2 redundant) inputs; 4 (2 redundant) ouputs
Network / Communication module
FX5-232-BD	FX5;Serial Communication Board;RS-232
FX5-232ADP	FX5;Serial Communication Adapter;RS-232
FX5-422-BD-GOT	FX5;Serial Communication Board;RS-422;Communication to GOT only
FX5-485-BD	FX5;Serial Communication Board;RS-485
FX5-485ADP	FX5;Serial Communication Adapter;RS-485
FX5-ASL-M	FX5;AS-Link Master Module
FX5-CCL-MS	FX5;CC-Link Master / Slave Module
FX5-CCLGN-MS	FX5 Communication module; CC Link IE TSN; master/local station
FX5-CCLIEF	FX5;CC-Link IE Field Slave Module
FX5-DP-M	FX5 Communication module; Profibus-DP Master Module
FX5-ENET	FX5 Communication module; Ethernet; MQTT; EMAIL
FX5-ENET/IP	FX5 Communication module; EtherNet/IP
FX5-OPC	FX5 OPC UA Server Module
Safety extension module
FX5-SF-8DI4	PLC Safety Extension Module; iQ-F; 8 (4 redundant) inputs
FX5-SF-MU4T5	PLC Safety Main Module; iQ-F; 4 (2 redundant) inputs; 4 (2 redundant) ouputs
Simple motion / Positioning Control module
FX5-20PG-D	FX5 2-axis pulse train positioning module; differential driver type
FX5-20PG-P	FX5;2 axis pulse train positioning module
FX5-40SSC-G	FX5; Simple Motion Module; 4 axes; CC-Link IE TSN
FX5-40SSC-S	FX5; Simple Motion Module; 4 axes (SSCNET III/H)
FX5-80SSC-G	FX5; Simple Motion Module; 8 axes; CC-Link IE TSN
FX5-80SSC-S	FX5; Simple Motion Module; 8 axes (SSCNET III/H)
