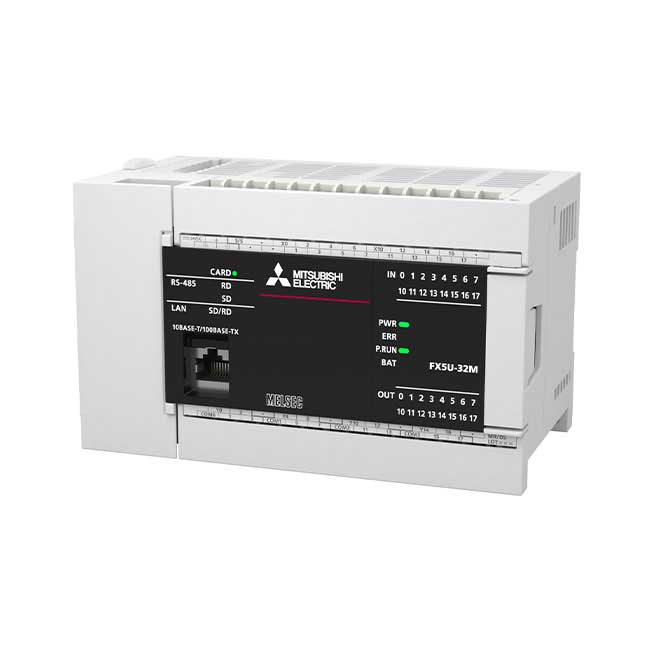

PLC Mitsubishi FX5U-32MT/DSS (16 In / 16 Out Transistor)
7.900.000 ₫
SKU: FX5U-32MT/DSS
Nhà Sản Xuất: Mitsubishi
Chất lượng: Mới 100%
Bảo hành: Chính hãng
Chứng từ: hóa đơn VAT
Dịch vụ kèm theo:
✓ Lập trình & Sửa chữa PLC Mitsubishi theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời
✓ Lập trình & Sửa chữa PLC Mitsubishi theo yêu cầu
✓ Lắp đặt & vận hành tận nơi
✓ Hỗ trợ kỹ thuật trọn đời
Mô tả
| Model | FX5U-32MT/DSS |
| Type | FX5U |
| Power Supply (V) | 24 |
| Current Type | DC |
| Program Memory | 64K STEPS |
| Program Memory Unit | FLASH |
| Integrated Digital Inputs | 16 |
| Integrated Digital Outputs | 16 |
| Integrated Analogue Inputs | 2 |
| Output Type | TRANSISTOR |
| Output Logic | SOURCE |
| Local I/O Points | 256 |
| Local + Remote I/O Points | 512 |
| Expandable | YES |
| Cycle Time LD (ns) | 34 |
| Cycle Time MOV (ns) | 34 |
| Ethernet Port | 1 |
| RS-485 | 1 |
| Power Consumption (W) | 30 |
| Buffer Battery | OPTION |
| Protection Class | IP10 |
| Min. Ambient Temperature (°C) | 0 |
| Max. Ambient Temperature (°C) | 55 |
| Series | MELSEC IQ-F SERIES |
| Width (mm) | 150 |
| Height (mm) | 90 |
| Depth (mm) | 83 |
| Weight (kg) | 0,65 |
PLC Mitsubishi FX5U Series
| Mã sản phẩm | mô tả |
|---|---|
| Điện áp nguồn: 110-220V | |
| FX5U-32MR/ES | 16 Inputs;16 Relay Outputs;3xAnalog;Eth;RS-485 |
| FX5U-32MT/ES | 16 Inputs;16 Transistor Outputs;3xAnalog;Eth;RS-485;sink |
| FX5U-64MR/ES | 32 Inputs;32 Relay Outputs;3xAnalog;Eth;RS-485 |
| FX5U-64MT/ES | 32 Inputs;32 Transistor Outputs;3xAnalog;Eth;RS-485;sink |
| FX5U-80MR/ES | 40 Inputs;40 Relay Outputs;3xAnalog;Eth;RS-485 |
| FX5U-80MT/ES | 40 Inputs;40 Transistor Outputs;3xAnalog;Eth;RS-485;sink |
| FX5U-32MT/ESS | 16 Inputs;16 Transistor Outputs;3xAnalog;Eth;RS-485;source |
| FX5U-64MT/ESS | 32 Inputs;32 Transistor Outputs;3xAnalog;Eth;RS-485;source |
| FX5U-80MT/ESS | 40 Inputs;40 Transistor Outputs;3xAnalog;Eth;RS-485;source |
| FX5S-30MR/ES | 16 Inputs, 14 Relay Outputs |
| FX5S-30MT/ES | 16 Inputs, 14 Transistor/sink Outputs |
| FX5S-30MT/ESS | 16 Inputs, 14 Transistor/source Outputs |
| FX5S-40MR/ES | 24 Inputs, 16 Relay Outputs |
| FX5S-40MT/ES | 24 Inputs, 16 Transistor/sink Outputs |
| FX5S-40MT/ESS | 24 Inputs, 16 Transistor/source Outputs |
| FX5S-60MR/ES | 36 Inputs, 24 Relay Outputs |
| FX5S-60MT/ES | 36 Inputs, 24 Transistor/sink Outputs |
| FX5S-60MT/ESS | 36 Inputs, 24 Transistor/source Outputs |
| FX5UJ-24MR/ES | 14 Inputs; 10 Relay Outputs; Ethernet; SD; USB |
| FX5UJ-24MT/ES | 14 Inputs; 10 Transistor Outputs; sink; Eth.; SD; USB |
| FX5UJ-24MT/ESS | 14 Inputs; 10 Transistor Outputs source; Eth.; SD; USB |
| FX5UJ-40MR/ES | 24 Inputs; 16 Relay Outputs; Ethernet; SD; USB |
| FX5UJ-40MT/ES | 24 Inputs; 16 Transistor Outputs; sink; Eth.; SD; USB |
| FX5UJ-40MT/ESS | 24 Inputs; 16 Transistor Outputs source; Eth.; SD; USB |
| FX5UJ-60MR/ES | 36 Inputs; 24 Relay Outputs; Ethernet; SD; USB |
| FX5UJ-60MT/ES | 36 Inputs; 24 Transistor Outputs; sink; Eth.; SD; USB |
| FX5UJ-60MT/ESS | 36 Inputs; 24 Transistor Outputs source; Eth.; SD; USB |
| Điện áp nguồn: 24VDC | |
| FX5U-32MR/DS | 16 Inputs;16 Relay Outputs;3xAnalog;Eth;RS-485 |
| FX5U-32MT/DS | 16 Inputs;16 Transistor Outputs;3xAnalog;Eth;RS-485;sink |
| FX5U-32MT/DSS | 16 Inputs;16 Transistor Outputs;3xAnalog;Eth;RS-485;source |
| FX5U-64MR/DS | 32 Inputs;32 Relay Outputs;3xAnalog;Eth;RS-485 |
| FX5U-64MT/DS | 32 Inputs;32 Transistor Outputs;3xAnalog;Eth;RS-485;sink |
| FX5U-64MT/DSS | 32 Inputs;32 Transistor Outputs;3xAnalog;Eth;RS-485;source |
| FX5U-80MR/DS | 40 Inputs;40 Relay Outputs;3xAnalog;Eth;RS-485 |
| FX5U-80MT/DS | 40 Inputs;40 Transistor Outputs;3xAnalog;Eth;RS-485;sink |
| FX5U-80MT/DSS | 40 Inputs;40 Transistor Outputs;3xAnalog;Eth;RS-485;source |
| FX5UC-32MR/DS-TS | 16 Inputs;16 Relay Outputs;Eth;RS-485;spring clamp |
| FX5UC-32MT/D | 16 Inputs;16 Transistor Outputs;Eth;RS-485;sink |
| FX5UC-32MT/DS-TS | 16 Inputs;16 Transistor Outputs;Eth;RS-485;spring clamp;sink |
| FX5UC-32MT/DSS | 16 Inputs;16 Transistor Outputs;Eth;RS-485;source |
| FX5UC-32MT/DSS-TS | 16 Inputs;16 Transistor Outputs;Eth;RS-485;spring clamp;source |
| FX5UC-64MT/D | 32 Inputs;32 Transistor Outputs;Eth;RS-485;sink |
| FX5UC-64MT/DSS | 32 Inputs;32 Transistor Outputs;Eth;RS-485;source |
| FX5UC-96MT/D | 48 Inputs;48 Transistor Outputs;Eth;RS-485;sink |
| FX5UC-96MT/DSS | 48 Inputs;48 Transistor Outputs;Eth;RS-485;source |
| FX5UJ-24MR/DS | 14 Inputs; 10 Relay Outputs; Ethernet; SD; USB |
| FX5UJ-24MT/DS | 14 Inputs; 10 Transistor Outputs; sink; Eth.; SD; USB |
| FX5UJ-24MT/DSS | 14 Inputs; 10 Transistor Outputs source; Eth.; SD; USB |
| FX5UJ-40MR/DS | 24 Inputs; 16 Relay Outputs; Ethernet; SD; USB |
| FX5UJ-40MT/DS | 24 Inputs; 16 Transistor Outputs; sink; Eth.; SD; USB |
| FX5UJ-40MT/DSS | 24 Inputs; 16 Transistor Outputs source; Eth.; SD; USB |
| FX5UJ-60MR/DS | 36 Inputs; 24 Relay Outputs; Ethernet; SD; USB |
| FX5UJ-60MT/DS | 36 Inputs; 24 Transistor Outputs; sink; Eth.; SD; USB |
| FX5UJ-60MT/DSS | 36 Inputs; 24 Transistor Outputs source; Eth.; SD; USB |
Kích thước lắp đặt PLC FX5U
► Catalogue Mitsubishi FX5U Series
► Manual Mitsubishi FX5U Series
